1. 是什么
高效的序列化、反序列化方式
1.1. 普通序列化
- Teacher
public class Teacher implements Serializable
{
private Long teacherId;
private Integer age;
private String name;
private List<String> courses = new ArrayList<>();
public Long getTeacherId()
{
return teacherId;
}
public void setTeacherId(Long teacherId)
{
this.teacherId = teacherId;
}
public Integer getAge()
{
return age;
}
public void setAge(Integer age)
{
this.age = age;
}
public String getName()
{
return name;
}
public void setName(String name)
{
this.name = name;
}
public List<String> getCourses()
{
return courses;
}
public void setCourses(List<String> courses)
{
this.courses = courses;
}
@Override
public String toString()
{
return "Teacher{" + "teacherId=" + teacherId + ", age=" + age + ", name='" + name + '\'' + ", courses=" + courses + '}';
}
}- Test
public class Test
{
public static void main(String[] args) throws IOException, ClassNotFoundException
{
Teacher teacher = new Teacher();
teacher.setTeacherId(1L);
teacher.setAge(32);
teacher.setName("张飞");
teacher.getCourses().add("java");
byte[] bytes = serialize(teacher);
System.out.println(Arrays.toString(bytes));
Teacher teacher1 = deserialize(bytes);
System.out.println(teacher1);
}
private static Teacher deserialize(byte[] bytes) throws IOException, ClassNotFoundException
{
ObjectInputStream objectInputStream = new ObjectInputStream(new ByteArrayInputStream(bytes));
return (Teacher) objectInputStream.readObject();
}
private static byte[] serialize(Teacher teacher) throws IOException
{
ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
ObjectOutputStream outputStream = new ObjectOutputStream(byteArrayOutputStream);
outputStream.writeObject(teacher);
return byteArrayOutputStream.toByteArray();
}
}- 结果 可以看出字节数挺大的
[-84, -19, 0, 5, 115, 114, 0, 29, 99, 111, 109, 46, 122, 115, 107, 46, 116, 101, 115, 116, 46, 112, 114, 111, 116, 111, 98, 117, 102, 46, 84, 101, 97, 99, 104, 101, 114, 94, 99, 107, -78, -117, -101, -64, 60, 2, 0, 4, 76, 0, 3, 97, 103, 101, 116, 0, 19, 76, 106, 97, 118, 97, 47, 108, 97, 110, 103, 47, 73, 110, 116, 101, 103, 101, 114, 59, 76, 0, 7, 99, 111, 117, 114, 115, 101, 115, 116, 0, 16, 76, 106, 97, 118, 97, 47, 117, 116, 105, 108, 47, 76, 105, 115, 116, 59, 76, 0, 4, 110, 97, 109, 101, 116, 0, 18, 76, 106, 97, 118, 97, 47, 108, 97, 110, 103, 47, 83, 116, 114, 105, 110, 103, 59, 76, 0, 9, 116, 101, 97, 99, 104, 101, 114, 73, 100, 116, 0, 16, 76, 106, 97, 118, 97, 47, 108, 97, 110, 103, 47, 76, 111, 110, 103, 59, 120, 112, 115, 114, 0, 17, 106, 97, 118, 97, 46, 108, 97, 110, 103, 46, 73, 110, 116, 101, 103, 101, 114, 18, -30, -96, -92, -9, -127, -121, 56, 2, 0, 1, 73, 0, 5, 118, 97, 108, 117, 101, 120, 114, 0, 16, 106, 97, 118, 97, 46, 108, 97, 110, 103, 46, 78, 117, 109, 98, 101, 114, -122, -84, -107, 29, 11, -108, -32, -117, 2, 0, 0, 120, 112, 0, 0, 0, 32, 115, 114, 0, 19, 106, 97, 118, 97, 46, 117, 116, 105, 108, 46, 65, 114, 114, 97, 121, 76, 105, 115, 116, 120, -127, -46, 29, -103, -57, 97, -99, 3, 0, 1, 73, 0, 4, 115, 105, 122, 101, 120, 112, 0, 0, 0, 1, 119, 4, 0, 0, 0, 1, 116, 0, 4, 106, 97, 118, 97, 120, 116, 0, 6, -27, -68, -96, -23, -93, -98, 115, 114, 0, 14, 106, 97, 118, 97, 46, 108, 97, 110, 103, 46, 76, 111, 110, 103, 59, -117, -28, -112, -52, -113, 35, -33, 2, 0, 1, 74, 0, 5, 118, 97, 108, 117, 101, 120, 113, 0, 126, 0, 7, 0, 0, 0, 0, 0, 0, 0, 1]
Teacher{teacherId=1, age=32, name='张飞', courses=[java]}1.2. protobuf序列化
- TearchSerializer.proto
syntax = "proto3";
option java_package = "com.example.test.protobuf.proto";
option java_outer_classname = "TearcherSerializer";
message Teacher {
int64 tearcherId = 1;
int32 age = 2;
string name = 3;
repeated string courses = 4;
}- 生成Java
protoc .\TeacherSerializer.proto --java_out=.\- Test
public class TestSerializer
{
public static void main(String[] args) throws InvalidProtocolBufferException
{
byte[] bytes = serialize();
System.out.println(Arrays.toString(bytes));
TearcherSerializer.Teacher teacher = deserialize(bytes);
System.out.println(teacher.getTearcherId());
System.out.println(teacher.getName());
System.out.println(teacher.getAge());
System.out.println(teacher.getCoursesList());
}
private static TearcherSerializer.Teacher deserialize(byte[] bytes) throws InvalidProtocolBufferException
{
return TearcherSerializer.Teacher.parseFrom(bytes);
}
private static byte[] serialize()
{
TearcherSerializer.Teacher.Builder builder = TearcherSerializer.Teacher.newBuilder();
builder.setTearcherId(1L).setAge(22).setName("张飞").addCourses("java");
TearcherSerializer.Teacher build = builder.build();
return build.toByteArray();
}
}- 结果 可以看出生成的字节数小
[8, 1, 16, 22, 26, 6, -27, -68, -96, -23, -93, -98, 34, 4, 106, 97, 118, 97]
1
张飞
22
[java]1.3. 对比
protobuf序列化的时候减少了一些额外的信息 比如int占用4个字节，而protobuf则是根据长度占用1-5个字节
1.3.1. 普通的序列化反序列化
public class TestInteger
{
public static void main(String[] args)
{
byte[] bytes = intToBytes(11);
System.out.println(Arrays.toString(bytes));
int value = bytesToInt(bytes);
System.out.println(value);
}
private static int bytesToInt(byte[] bytes)
{
return (bytes[0] & 0xFF) |
((bytes[1] << 8) & 0xFF00) |
((bytes[2] << 16) & 0xFF0000) |
((bytes[3] << 24) & 0xFF000000);
}
//大端：高字节位在低地址。小端：低字节位在低地址
private static byte[] intToBytes(int value)
{
byte[] bytes = new byte[4];
//与上0xFF000000表示只保留最高字节，同时右移3*8表示把这个字节移到最后，强转成byte才能取出这个字节
bytes[3] = (byte)((value & 0xFF000000) >> 3*8);
bytes[2] = (byte)((value & 0x00FF0000) >> 2*8);
bytes[1] = (byte)((value & 0x0000FF00) >> 1*8);
bytes[0] = (byte)((value & 0x000000FF)); //这里采用小端法
return bytes;
}
}1.3.2. protobuf源码
com.google.protobuf.AbstractMessageLite#toByteArray->com.example.test.protobuf.proto.TearcherSerializer.Teacher#writeTo
public void writeTo(com.google.protobuf.CodedOutputStream output)
throws java.io.IOException {
if (tearcherId_ != 0L) {
output.writeInt64(1, tearcherId_);//可以看出按照顺序写的，这里是1
}
if (age_ != 0) {
//我们追这个源码：com.google.protobuf.CodedOutputStream.ArrayEncoder#writeInt32
output.writeInt32(2, age_);//可以看出按照顺序写的，这里是2
}
if (!getNameBytes().isEmpty()) {
com.google.protobuf.GeneratedMessageV3.writeString(output, 3, name_);//可以看出按照顺序写的，这里是3
}
for (int i = 0; i < courses_.size(); i++) {
com.google.protobuf.GeneratedMessageV3.writeString(output, 4, courses_.getRaw(i));//可以看出按照顺序写的，这里是4
}
unknownFields.writeTo(output);
}- com.google.protobuf.CodedOutputStream.ArrayEncoder#writeInt32
public final void writeInt32(final int fieldNumber, final int value) throws IOException {
writeTag(fieldNumber, WireFormat.WIRETYPE_VARINT);
//这个com.google.protobuf.CodedOutputStream.ArrayEncoder#writeInt32NoTag
writeInt32NoTag(value);
}- com.google.protobuf.CodedOutputStream.ArrayEncoder#writeInt32NoTag
public final void writeInt32NoTag(int value) throws IOException {
if (value >= 0) {
//这个com.google.protobuf.CodedOutputStream.ArrayEncoder#writeUInt32NoTag
writeUInt32NoTag(value);
} else {
// Must sign-extend.
writeUInt64NoTag(value);
}
}- com.google.protobuf.CodedOutputStream.ArrayEncoder#writeUInt32NoTag
public final void writeUInt32NoTag(int value) throws IOException {
if (HAS_UNSAFE_ARRAY_OPERATIONS
&& !Android.isOnAndroidDevice()
&& spaceLeft() >= MAX_VARINT32_SIZE) {
if ((value & ~0x7F) == 0) {
UnsafeUtil.putByte(buffer, position++, (byte) value);
return;
}
UnsafeUtil.putByte(buffer, position++, (byte) (value | 0x80));
value >>>= 7;
if ((value & ~0x7F) == 0) {
UnsafeUtil.putByte(buffer, position++, (byte) value);
return;
}
UnsafeUtil.putByte(buffer, position++, (byte) (value | 0x80));
value >>>= 7;
if ((value & ~0x7F) == 0) {
UnsafeUtil.putByte(buffer, position++, (byte) value);
return;
}
UnsafeUtil.putByte(buffer, position++, (byte) (value | 0x80));
value >>>= 7;
if ((value & ~0x7F) == 0) {
UnsafeUtil.putByte(buffer, position++, (byte) value);
return;
}
UnsafeUtil.putByte(buffer, position++, (byte) (value | 0x80));
value >>>= 7;
UnsafeUtil.putByte(buffer, position++, (byte) value);
} else {
try {
//关键代码在这里，使用小端法
//每个循环都是处理一个字节
while (true) {
//0x7F取反与上value，得到的结果为高（32-7）=25位
//如果为0那么没有高字节位需要处理了
//或者说数字的范围在一个字节内，即<=127
if ((value & ~0x7F) == 0) {
buffer[position++] = (byte) value;
return;
} else {
//0x7F与上value，取出的结果是低7bit，或上0x80得到的结果是第8位为1
//凑够一个字节存入buffer
buffer[position++] = (byte) ((value & 0x7F) | 0x80);
//继续下一个7bit
value >>>= 7;
}
}
} catch (IndexOutOfBoundsException e) {
throw new OutOfSpaceException(
String.format("Pos: %d, limit: %d, len: %d", position, limit, 1), e);
}
}
}2. 安装
2.1. 安装protobuf
- 下载 Releases · protocolbuffers/protobuf

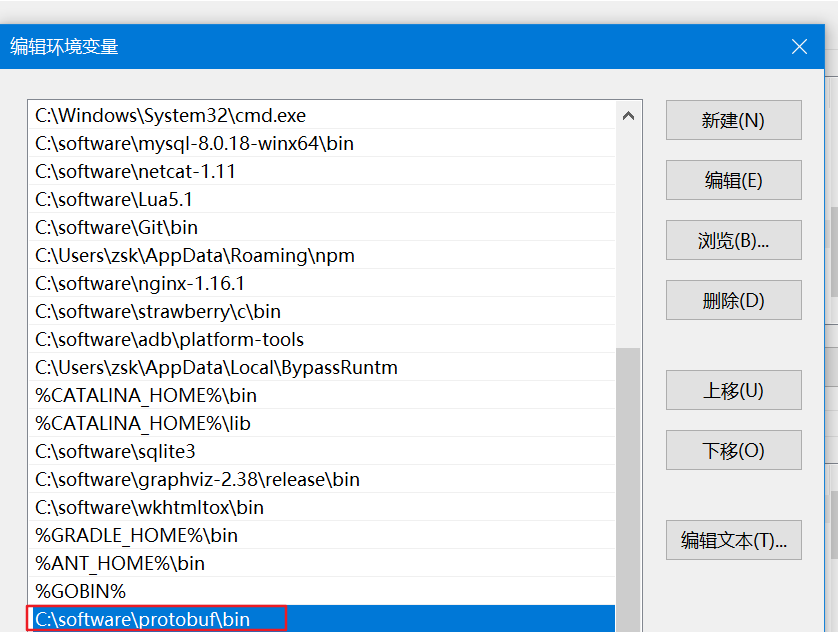

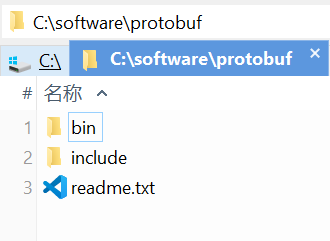

- 解压配置好环境变量
2.2. 安装protoc-gen-go
-
前提是配置好GOBIN环境变量
-
下载源码

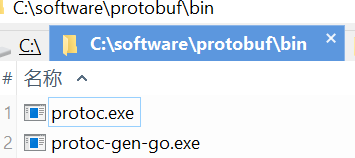

go get -v github.com/golang/protobuf/{proto,protoc-gen-go}- 把可执行文件放在protoc的安装目录下
- 也可以安装到GOBIN中
cd $GOPATH/src/github.com/golang/protobuf/protoc-gen-go
go install
cd $GOBIN
ls3. 使用
- proto1.proto
syntax = "proto3"; //指定版本信息，不指定会报错
option go_package = ".;pb"; //后期生成go文件的包名
//message为关键字，作用为定义一种消息类型
message Person {
// 名字
string name = 1;
// 年龄
int32 age = 2;
// 邮箱
repeated string emalis = 3;
// 手机
repeated string phones = 4;
// repeated为关键字，作用为重复使用 一般在go语言中用切片表示
}- 生成go文件
protoc --go_out=./ *.proto- 测试生成的go文件
import (
"fmt"
"github.com/golang/protobuf/proto"
pb "my_demo/proto_test"
)
func main() {
p := &pb.Person{
Name: "example",
Age: 25,
Emalis: []string{"<EMAIL>"},
Phones: []string{"<PHONE>"},
}
fmt.Println(p)
//json序列化为字节
data, err := proto.Marshal(p)
if err != nil {
fmt.Println("Marshal error")
}
fmt.Println(data)
//json反序列化为对象
p2 := &pb.Person{}
proto.Unmarshal(data, p2)
fmt.Println(p2)
}
