6.3 3.volatile

1. What Is It?

A lightweight synchronization mechanism in Java. It mainly guarantees ordering, visibility, and atomic reads/writes of the variable itself.

• Lightweight
  Compared with synchronized, volatile does not itself cause threads to block.
• Atomicity
  Reads and writes of a single volatile variable are atomic, but compound operations such as volatileVar++ are not atomic.
• Visibility
  A volatile write makes the update visible according to the Java Memory Model so that other threads subsequently reading the volatile variable can observe the latest write.
• Ordering
  A read of a volatile variable observes a write ordered before it according to the volatile happens-before rule.

2. When Is volatile More Suitable Than synchronized?

2.1. Example

In the following program, thread1 may not stop when isRunning is an ordinary non-volatile field.

public class VolatileTest
{
    private static boolean isRunning = true;

    public static void main(String[] args) throws InterruptedException
    {
        Thread thread1 = new Thread(()->{
            System.out.println("thread1 is running");
            while (isRunning)
            {

            }
            System.out.println("thread1 will be stopped");
        });
        thread1.start();

        Thread.sleep(1000);

        Thread thread2 = new Thread(()->{
            System.out.println("thread2 is running");

            isRunning = false;

            System.out.println("thread2 change isRunning flag");
        });
        thread2.start();

        thread1.join();
        thread2.join();
    }
}

2.2. Analysis of Why It May Not Stop

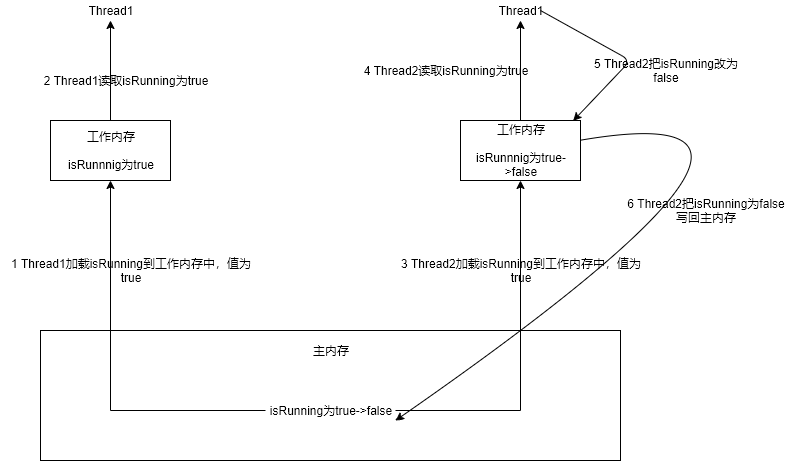

The original note explains it conceptually as follows:

1. Thread1 reads isRunning and may continue using a value from its working-memory view.
2. Thread2 changes isRunning from true to false.
3. Without a visibility guarantee, Thread1 is not guaranteed to observe Thread2’s update in the required way.

2.3. Solution

Declare isRunning as volatile.

public class VolatileTest
{
    private static volatile boolean isRunning = true;

    public static void main(String[] args) throws InterruptedException
    {
        Thread thread1 = new Thread(()->{
            System.out.println("thread1 is running");
            while (isRunning)
            {

            }
            System.out.println("thread1 will be stopped");
        });
        thread1.start();

        Thread.sleep(1000);

        Thread thread2 = new Thread(()->{
            System.out.println("thread2 is running");

            isRunning = false;

            System.out.println("thread2 change isRunning flag");
        });
        thread2.start();

        thread1.join();
        thread2.join();
    }
}

2.4. volatile vs. synchronized

	volatile	synchronized
Memory-model properties	Visibility, ordering, atomic read/write of the volatile variable itself	Visibility, ordering, and mutual exclusion for the protected critical section
Causes thread blocking	No by itself	May block
Scope	Variable level	Critical sections, methods, class-level locking

3. Assembly-Code Experiment

3.1. Download and Compile hsdis-amd64.dll

Refer to How to build hsdis-amd64.dll and hsdis-i386.dll on Windows or hsdis-amd64.7z.

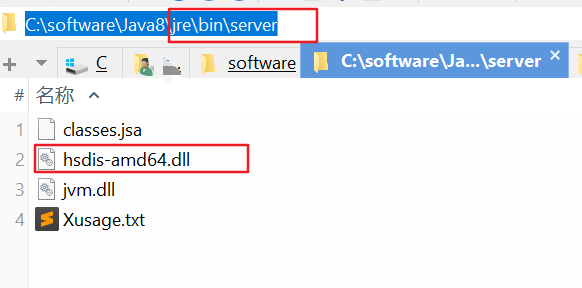

3.2. Put It in the JRE bin Directory

3.3. Comparison Experiment

• With volatile

public class TestVolatile
{
    private static volatile int i = 0;
    public static void main(String[] args)
    {
        test();
    }

    private static void test()
    {
        i++;
    }
}

• Without volatile

public class TestVolatile
{
    private static int i = 0;
    public static void main(String[] args)
    {
        test();
    }

    private static void test()
    {
        i++;
    }
}

3.4. Run with JVM Parameters

-server -Xcomp -XX:+UnlockDiagnosticVMOptions -XX:-Inline -XX:CompileCommand=print,*TestVolatile.test

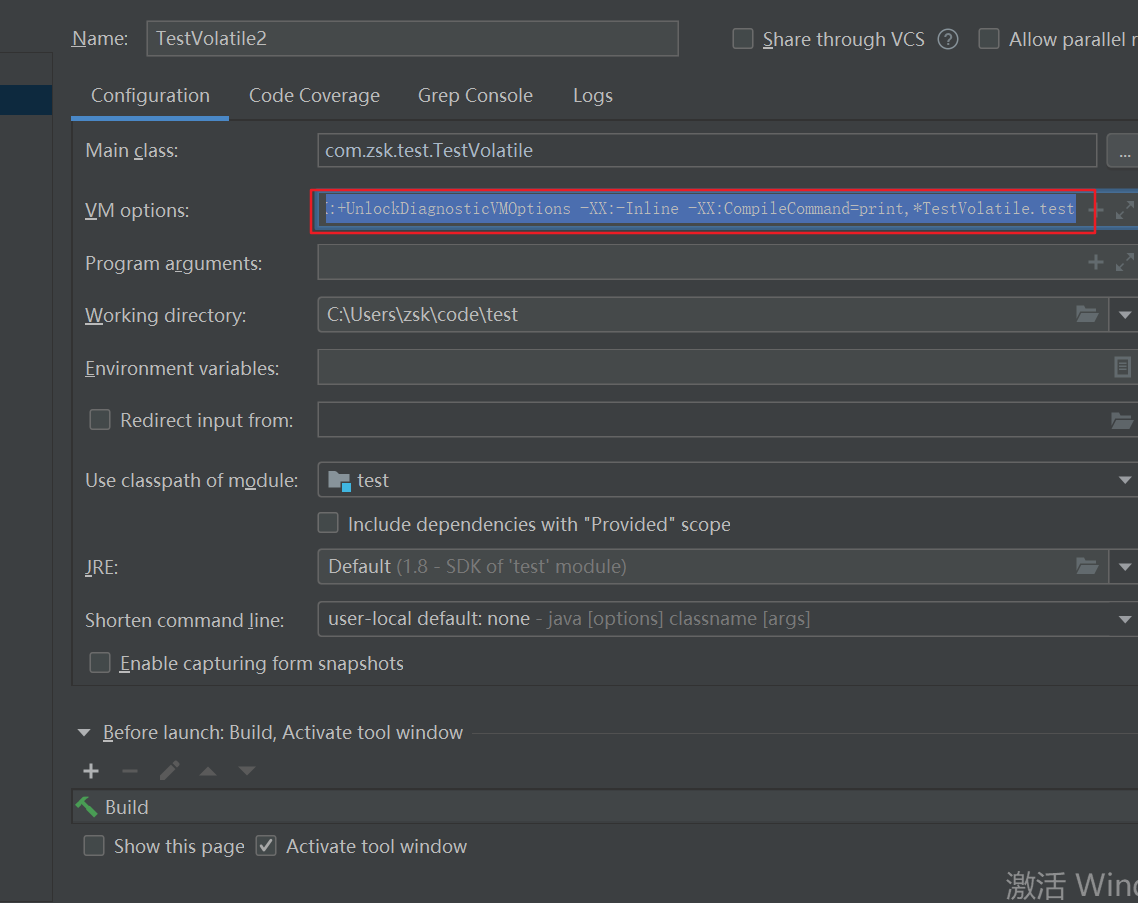

In IDEA:

3.5. Compare the Output

The results are in the attachments:

• volatile.txt
• ordinary.txt

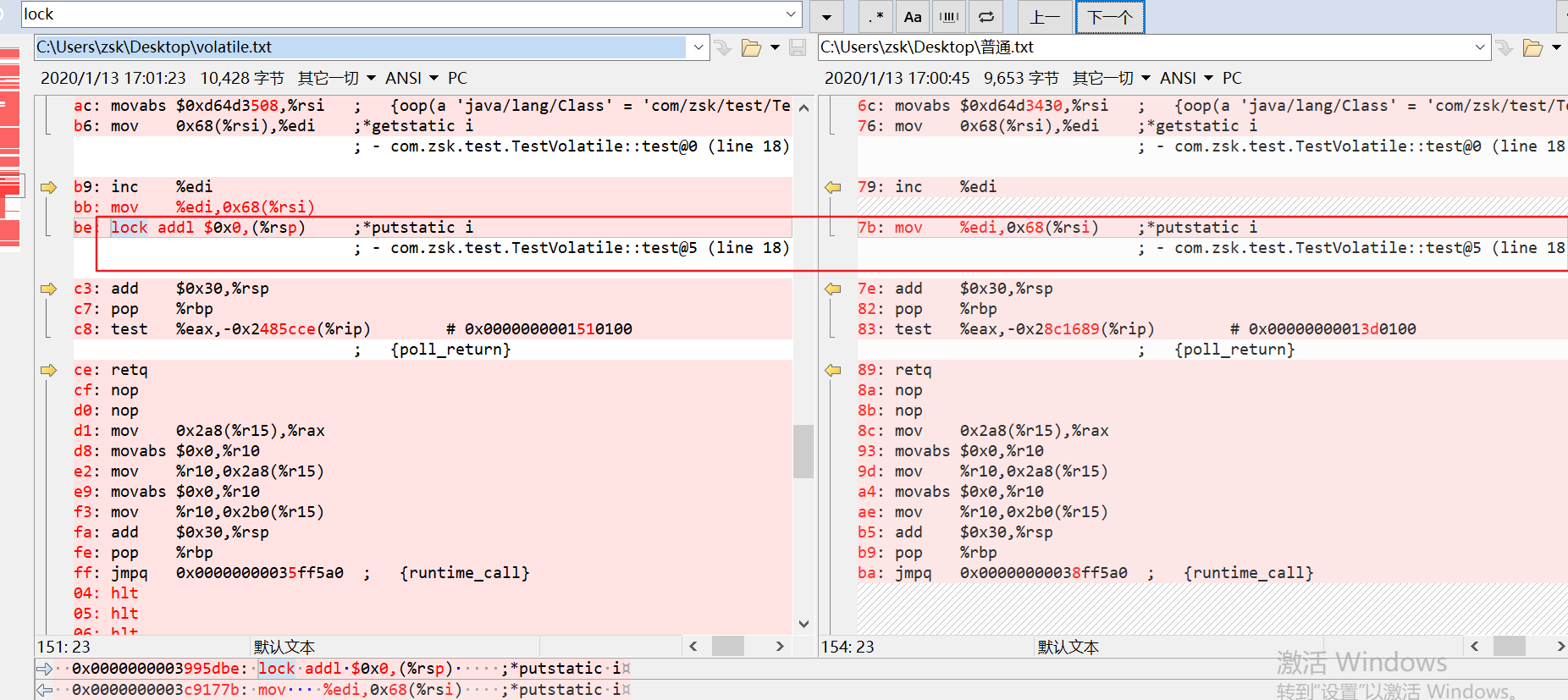

A Beyond Compare screenshot is shown below:

4. Analyze the Principle from the Experimental Result

At the assembly level, the volatile version has an additional instruction compared with the ordinary version: lock addl $0x0,(%rsp). In this experiment, it acts as a memory-barrier effect.

1. Prevent relevant instructions on the two sides of the barrier from being reordered across it.
2. Ensure the required visibility/ordering effects between the processor/cache subsystem and memory according to the platform and JVM implementation.

4.1. Visibility

The volatile memory-ordering semantics provide visibility:

• a volatile write publishes prior writes;
• another thread’s subsequent volatile read can observe the write and the preceding effects according to happens-before.

4.2. Ordering

The memory-ordering semantics also provide ordering.

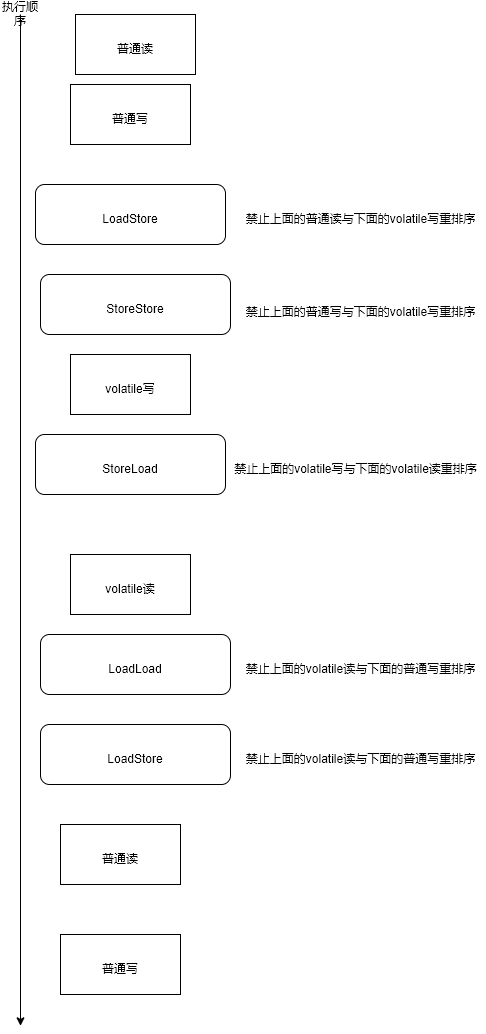

Conceptually, a release barrier before a volatile write prevents earlier reads/writes from being reordered after the volatile write, while an acquire barrier after a volatile read prevents later reads/writes from being reordered before the volatile read.

5. References

• In-Depth Understanding of the Java Memory Model (4): volatile - InfoQ
• If Someone Asks You What volatile Is Again, Send Them This Article - HollisChuang’s Blog
• Underlying Implementation Principle of the Java volatile Keyword - Crow’s Blog
• Precisely Explaining Java volatile Visibility, Atomicity, and Ordering Through Assembly - OSCHINA
• Difference Between volatile and synchronized - Juejin
